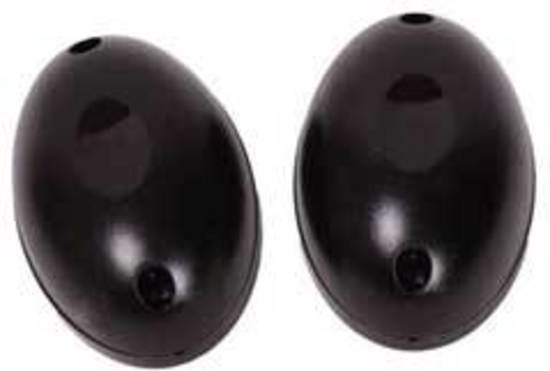

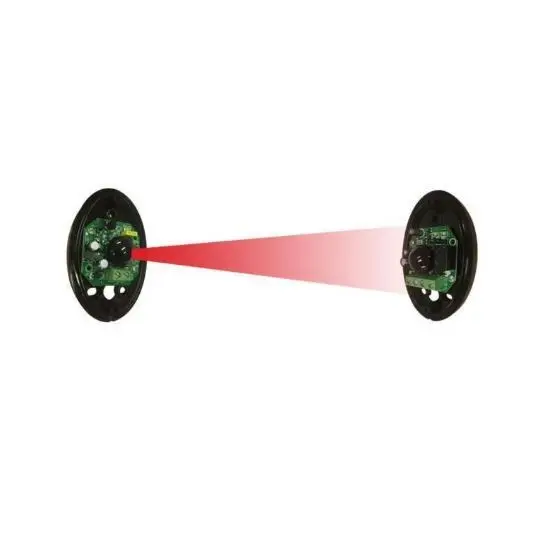

The ET405 Waterproof Photo Sensor Safety Beam is a reliable and essential component designed for sliding gate and swing gate motors. This sensor system utilizes photo sensor technology to create a safety beam that detects any interruption within its coverage range. It ensures enhanced safety by triggering immediate gate reversal or motor shutdown when an object is detected in the gate's path. With its waterproof construction, the ET405 sensor is suitable for outdoor installations, providing reliable performance in various weather conditions. It offers a convenient and effective solution for preventing accidents or damage caused by gate operation. Upgrade your sliding gate or swing gate motor with the ET405 Waterproof Photo Sensor Safety Beam for optimal safety and peace of mind.
Specifications
Detection technology: Infrared
Range: 16m
Frequency: 1.92Khz
Power: 12-24V AC/DC
Wave Length: 940mm
Input: RX 15mA, TX 30mA
Operating temperature: -20 to 70 degrees
Relay output: 1Amp max 30
IP56 Rating
Dimension: 7.51 x 4.95 x 2.65cm
Note: The range give above may change according to the site environment conditions and according to the weather
Photoelectric Beam Gate Sensor also well-known as...
- Gate sensor - Safety sensor,
- Infrared Photocell gate sensor,
- Infrared gate sensors,
- Photoelectric gate sensors,
- Sliding gate safety beams,
- Sliding gate safety sensor,
- Photo Beams for Gates,
- Safety Beam
- Infrared Photocell Gate Sensor
- Reflector Detector
