  2. Digital Bluetooth Touch Keypad Waterproof and Weather resistant Anti-Vandal PIN 12/24 V

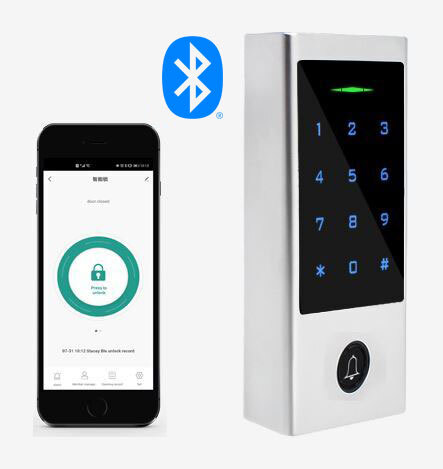

Digital Bluetooth Touch Keypad Waterproof and Weather resistant Anti-Vandal PIN 12/24 V

Digital Bluetooth Touch Keypad Waterproof and Weather resistant Anti-Vandal PIN 12/24 V

ET904
https://gatesplus-fencing.com/web/image/product.template/1338/image_1920?unique=5414ec7
(0 review)

$ 143.10 143.1 AUD $ 143.10

$ 189.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    All Categories in - Access Controls

    Bulk Quantity Price per piece

    Digital Outdoor Touch Keypad & Reader Waterproof and weather resistant Anti-Vandal PIN 12/24 V

    The Bluetooth-enabled waterproof touch keypad + RFID access controller. It's integrated

    with Tuya which supports 100 users (including 255  card/ PIN users). It's available for both iOS and Anddroid.

    Package includes:
    1 x Metal Access Control
    1 x Installation Kit
    1 x User Manual

    Features:

    • Waterproof, conforms to IP66
    • Metal housing, anti-vandal
    • Card type:  EM Card or Mifare Card
    • iOS and Android available
    • Add / Delete users by APP
    • Support checking Opening Record
    • Support Gateway
    • Multiple Access Modes: Smartphone, Card, PIN
    • Compatible with all bluetooth - Enabled mobile phone (Version: 4.0 above)
    • Various Methods to open the gate/door, make it easy and safe entrance
    • Support Adding / Deleting Users by APP
    • Support view opening record
    • App name TuyaSmart available both for ios and android
    User Capacity
     Common User
     Visitor User
     Panic User
    Hardware User: 1000          APP User: 100 (including 255  card/ PIN users)
    988
    10
    2
    PIN Length 4~6 digits
    Operating Voltage
     Idle Current
     Active Current
    12~28V AC/DC
     â‰¤ 60mA
    ≤ 150mA
    Proximity Card Reader
     Radio Technlogy
     Read Range    		 EM or Mifare
    125KHz/13.56MHz
    2~6cm
    Wiring Connections Relay output, exit button, alarm, door contact, Wiegand input/output
    Relay
    Adjustable Relay Output Time
    Lock Output Load
    One (NO, NC, Common)
    0~99 Seconds (5 seconds default)
    2 Amp Maximum
    Wiegand Interface


    PIN Output

    EM card version: Wiegand 26~44 bits input & output (Factory default: Wiegand 26bits)

    Mifare card version:Wiegand 26~44 bits,56bits,58bits input & output (Factory default: Wiegand 34bits)

    4 bits,8bits (ASCII),10 digits Virtual Number(Factory default:4bits)
    Environment
    Operating Temperature
    Operating Humidity
    Meets IP66
    -40°C ~ 60°C (-40°F ~ 140°F)
    0%RH ~ 98%RH
    Physical
    Color
    Dimensions
    Unit Weight
    Shipping Weight
    Zinc-Alloy
    Sliver & Black
    L145x W68 x H25 (mm)
    500g
    615g
