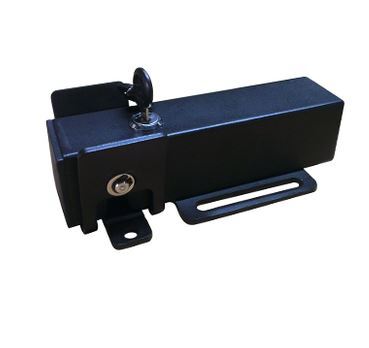

Electric Lock for Swing Gate 12V DC

FK790
https://www.gatesplus-fencing.com/web/image/product.template/2090/image_1920?unique=1d0d40a

265.00 265.0 AUD 265.00

265.00

Not Available For Sale

    This combination does not exist.

    Electronic Swing Gate Lock for Automatic gate 12V DC

    Electronic Gate Lock. (PowerLoKK)

    The Gate Fitted with the Lock must be connected to the gate which opens first and close last.
    No power consumption while it is locking, only requires momentary power to open to release the trigger. Only uses 2.3 amp to operate.
    Manual Override: Key Operated to enable manual operating during power failure (2 keys supplied)
    Ideal for Solar Gates or large or small swing gates 12V DC
    Simply wire to the Lock connector on most good Gate Motors.

    Colour supplied Black colour.



    Technical Specifications:

    Model:
    Operating Voltage:
    Operating Current:
    Pulse to Open Lock:
    Bolt Pin Diameter:
    Dimension:
    Working theory:
    Materials:
    Surface:
    Manual Override:

    FK790
    DC12V
    3A ~ 4.5A
    3 sec max
    16 mm
    194 x 95 x 66 mm
    Pulse to open
    Steel
    Powder Coating
    Key Operated Cam-Lock to enable manual operating during Power Failure
