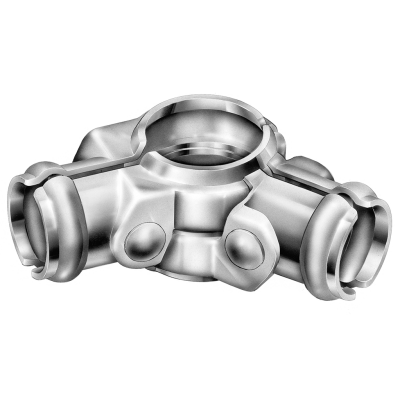

Galvanised Adjustable Corner fittings for tube 25x40NB
Hot-dip Galvanised Adjustable Corner fittings Connector for tube/pipe. These adjustable crosses can rotate through 270 degrees enabling you to connect through and butt pipe pieces to almost any required angles.
| CODE | BUTT | THRU | KG | A | B | C | ||
|---|---|---|---|---|---|---|---|---|
| HN452 | 25NB | 40NB | 0.70 | 53 | 86 | 37 |
Product codes for the tube are based on the NB (nominal bore) Please contact us for other through and butt pipe combinations. Powder-coated colours are also available.
Pipe / Tube Connector
| 20NB = 26.9mm OD | 25NB = 33.7mm OD | 32NB = 42.4mm OD | 40NB = 48.3mm OD |
| 50NB = 60.3mm OD | 65NB = 76.1mm OD | 80NB = 88.9mm OD | 100NB = 114.3mm OD |
