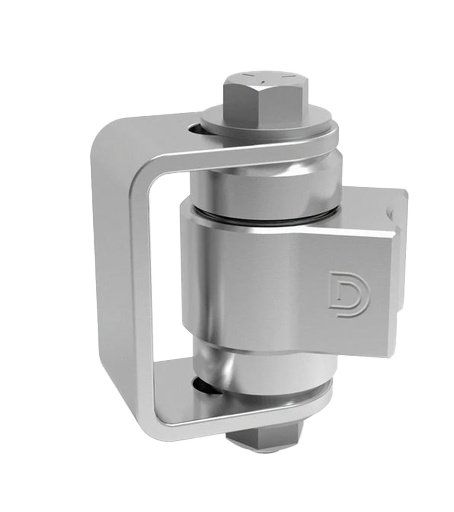

The 304 Stainless Steel Badass Hinge is designed for gates weighing up to 500 kg, offering a strong and durable hinge solution. Made from stainless steel , this hinge provides exceptional strength and corrosion resistance, making it suitable for outdoor use. With its sleek design and reliable performance, it adds a modern touch to gate installations. Whether for residential or commercial applications, the Stainless Steel Badass Hinge ensures secure and smooth operation for gates, providing convenience and peace of mind.
• 304 stainless steel inc. the bearings, shaft (bolt), washers and lock nut
• Two sealed maintenance free bearings (no greasing)
• Adjustable yoke for perfect installations
• Ideal for both square and round post installations
• Load rating per gate: 900kg (2,000 lbs)
• Maximum gate weight: 500kg (1,100 lbs)
| Gate Application | Pedestrian Gate, Driveway Gate - Double, Driveway Gate - Single, Pet Gate, Playground Gate, Public/Commercial Gate, Automated/Electric Gate, Security Gate, Privacy Gate |
| Gate Type | Non Self-Closing |
| Gate Material | Steel/Ornamental Iron |
| Approx Gate Size | 2m H x 3m W - (7ft x 10ft) |
| Gate Frame/Post Shape | Square-to-Square, Square-to-Round |
| Min Post Size | 38mm+ (1½") |
| Ideal Gate Gap | 61-74mm (2½ - 3") |
| Fixing Method | Weld-On |
| Colour/Finish | Stainless Steel |
