Description

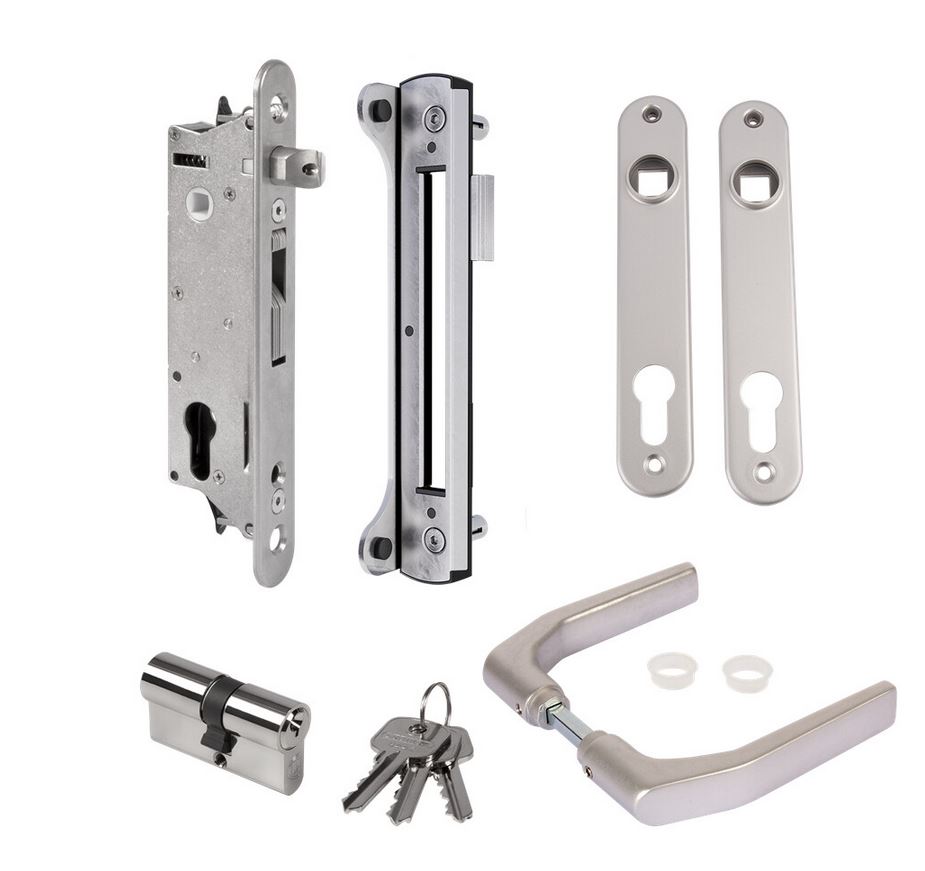

Insert lock with 100% stainless steel mechanism. The stainless steel and adjustable self-latching bolt combined with the right keep guarantee a strong and solid closed gate where the gate wings can not be pulled apart or forced open. The lock can be installed on metal, aluminum and PVC gates. Thanks to the patented "Click-It" system, mounting the lock can be done in a matter of seconds.

Specifications

• Lockmechanism with cover plate against dirt penetration
• Patented "Click-It" system makes tapping tread in the profile unnecessary
• Continuous adjustment of the daybolt up to 10 mm without dismounting the lockbox
• Key-operated self-latching bolt
• Mechanism, hook, frontplate, latchbolt: stainless steel
• Easy left or right changing of the self-latching daybolt
• Stainless steel hook for secure anchoring
• Throw of the hook: 21 mm
• Center-distance cylinder <=> handles => 92 mm
• Optional: Cover shield for handle & cylinder holes in aluminium, polyamide or stainless steel
•  Compatible with all Europrofile cylinders



Link for installation instruction
