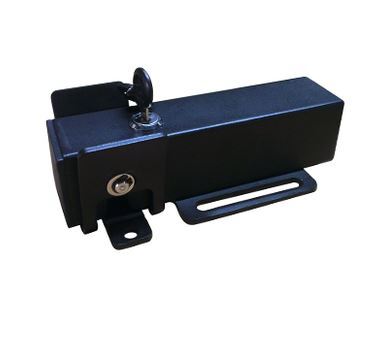

Electric Lock for Swing Gate 12V DC

FK790
https://www.gatesplus-fencing.com/web/image/product.template/2090/image_1920?unique=04f0acd
(0 review)

This product is no longer available.

Electronic Swing Gate Lock for Automatic gate 12V DC

Electronic Gate Lock. (PowerLoKK)

The Gate Fitted with the Lock must be connected to the gate which opens first and close last.
No power consumption while it is locking, only requires momentary power to open to release the trigger. Only uses 2.3 amp to operate.
Manual Override: Key Operated to enable manual operating during power failure (2 keys supplied)
Ideal for Solar Gates or large or small swing gates 12V DC
Simply wire to the Lock connector on most good Gate Motors.

Colour supplied Black colour.



Technical Specifications:

Model:
Operating Voltage:
Operating Current:
Pulse to Open Lock:
Bolt Pin Diameter:
Dimension:
Working theory:
Materials:
Surface:
Manual Override:

FK790
DC12V
3A ~ 4.5A
3 sec max
16 mm
194 x 95 x 66 mm
Pulse to open
Steel
Powder Coating
Key Operated Cam-Lock to enable manual operating during Power Failure
